ZVISION
Product Line

A complete LiDAR matrix, short to long range

Five sensors across three series — cost-sensitive 360° coverage, ultra-wide-FOV robotics, and long-range high-speed perception — sharing a common architecture so switching sensors doesn't mean redesigning your integration.

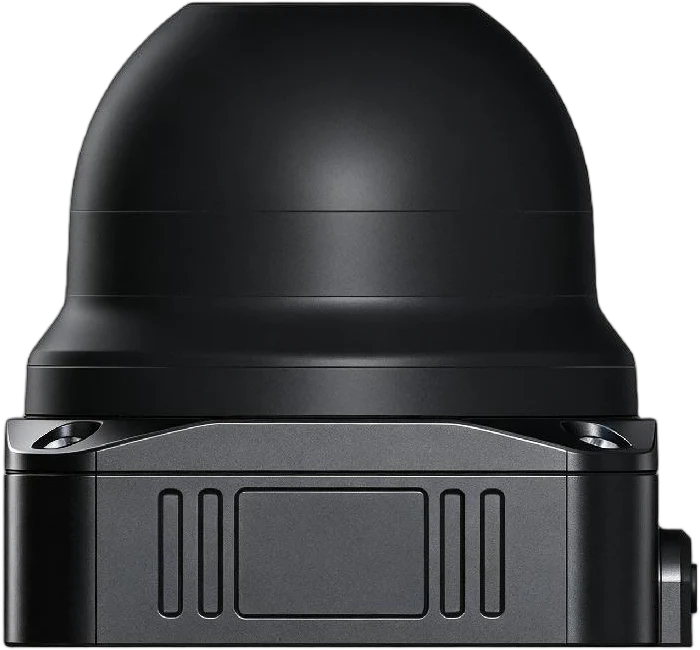

ZVISION MRZ-16 3D LiDAR sensor
MRZ SeriesMRZ-16

360° 3D LiDAR for cost-sensitive robotics

Range30 m @10% reflectivity @100 klux
ZVISION NZ1 3D LiDAR sensor
NZ SeriesNZ1

Ultra-wide-FOV LiDAR for mainstream robotics

Range40 m @10% reflectivity
ZVISION NZ3 3D LiDAR sensor
NZ SeriesNZ3

Mid-range wide-FOV LiDAR for outdoor robotics

Range70 m @10% reflectivity
ZVISION NZ5x 3D LiDAR sensor
NZ SeriesNZ5x

High-channel-count LiDAR for drones & long-range robotics

Range90 m @10% reflectivity
ZVISION EZ6 3D LiDAR sensor
EZ SeriesEZ6

Long-range LiDAR for high-speed autonomous platforms

Range200 m @10% reflectivity
Flagship Compare

NZ1, MRZ-16, EZ6 side by side

ZVISION flagship LiDAR comparison: NZ1, MRZ-16, EZ6
SpecNZ1Ultra-wide-FOV LiDAR for mainstream roboticsMRZ-16360° 3D LiDAR for cost-sensitive roboticsEZ6Long-range LiDAR for high-speed autonomous platforms
Range @10% reflectivity40 m @10% reflectivity30 m @10% reflectivity @100 klux200 m @10% reflectivity
Max range115 m80 mOn request
Field of view (H)240°360°On request
Field of view (V)80°40° (0–40°)On request
Channels9616On request
Angular resolution0.5° × 0.83°0.6° × 2.7°On request
Dimensions77 × 77 × 69 mm (H×D×W)64 × 68.5 × 65 mm (H×D×W)On request
Weight250 g250 gOn request
Power8 W3.7 WOn request
Best forAMR/AGV, Robot Dogs, HumanoidsAGV/AMR, Service Robots, Forklift RobotsRobotaxi, Heavy Trucks, L4 Autonomous Vehicles
Download DatasheetRequest a Sample
Full Specifications

All five sensors, every published spec

One table covering the whole product line. Values shown as “On request” are released under NDA for qualified programs rather than published.

Complete ZVISION LiDAR specification matrix: all five models across 16 specifications
SpecMRZ-16360° 3D LiDAR for cost-sensitive roboticsNZ1Ultra-wide-FOV LiDAR for mainstream roboticsNZ3Mid-range wide-FOV LiDAR for outdoor roboticsNZ5xHigh-channel-count LiDAR for drones & long-range roboticsEZ6Long-range LiDAR for high-speed autonomous platforms
TechnologyMechanical rotating1D rotating mirror, VCSEL+SPAD1D rotating mirror, VCSEL+SPAD1D rotating mirror, VCSEL+SPADOn request
Range @10% reflectivity30 m @10% reflectivity @100 klux40 m @10% reflectivity70 m @10% reflectivity90 m @10% reflectivity200 m @10% reflectivity
Max range80 m115 m115 m115 mOn request
Field of view (H)360°240°240°180°On request
Field of view (V)40° (0–40°)80°80°80°On request
Channels169696192On request
Angular resolution0.6° × 2.7°0.5° × 0.83°0.5° × 0.83°0.5° × 0.4°On request
Dimensions64 × 68.5 × 65 mm (H×D×W)77 × 77 × 69 mm (H×D×W)100 × 86 × 71 mm (H×D×W)100 × 86 × 71 mm (H×D×W)On request
Weight250 g250 g350 g360 gOn request
Power3.7 W8 W10 W10 WOn request
Accuracy±3 cmOn requestOn requestOn requestOn request
Frame rate5 / 10 HzOn requestOn requestOn requestOn request
Point rateOn requestOn requestOn requestOn requestOn request
IP ratingOn requestOn requestOn requestOn requestOn request
InterfaceOn requestOn requestOn requestOn requestOn request
SDK / ROSOn requestOn requestOn requestOn requestOn request
Best forAGV/AMR, Service Robots, Forklift RobotsAMR/AGV, Robot Dogs, HumanoidsCleaning Robots, Inspection Robots, Robot DogsDrones, UAVs, Outdoor RobotsRobotaxi, Heavy Trucks, L4 Autonomous Vehicles
